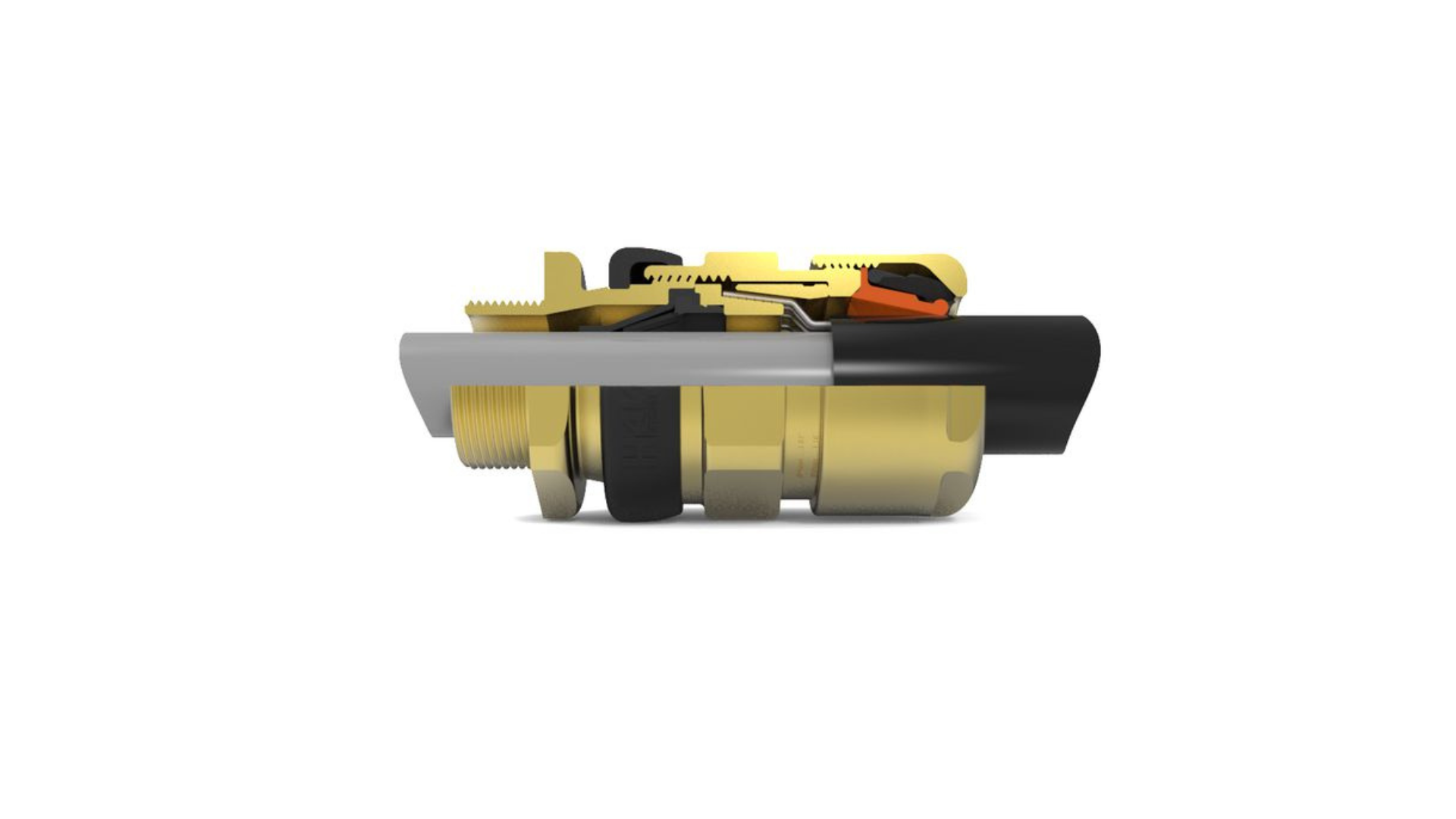

The 501/453/Universal Cable Gland is a Group II certified double seal cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas. Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) protection concepts.
The 501/453/Universal Cable Gland is a Group II certified double seal cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas. Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) protection concepts.
Integral grounding ring suitable for single wire armour ‘W’, wire braid ‘X’ and tape armour ‘Z’. Suitable for both elastomer and plastic insulated cables, and particularly for cables which exhibit ‘cold flow’ characteristics on the inner sheath.
The gland provides an elastomeric seal on the cable inner sheath and a low smoke, zero halogen IP and retention seal onto the cable outer sheath. Featuring an elastomeric Exd passive diaphragm seal that helps eliminate cold flow and is fully inspectable in situ.
For more information, please contact us at sales@petro-excel.com.my.
Dual certified ATEX/IECEx for Exd, Exe, ExnR and Ext protection concepts.
Elastomeric Exd passive diaphragm seal – eliminates cold flow and fully inspectable in situ.
Inspectable Deluge Seal offering superior ingress protection.
Suitable for Zone 1, Zone 2, Zone 21 and Zone 22
Dual Certified ATEX / IECEx (and more)
Ex d / Ex e / Ex nR / Ext protection concepts
Metallic body construction
Elastomeric Exd passive diaphragm seal – eliminates cold flow & fully inspectable in situ
Reversible Armour Clamp – for all types of armour, braid and tape
Patented Cable Gland Tightening Guide – prevents over-tightening damage
Unique Rear Seal – ultimate sealing over wide cable acceptance range
Inspectable Deluge Seal – IP66, IP67, IP68 & IP69
Integral grounding ring for armour ‘W’, braid ‘X’ & tape ‘Z’
Suitable for elastomer & plastic insulated cables (especially cold flow types)
Available with metric or NPT entry threadforms
